TPS Switchgear Air-Insulated.

Features

TPS is a complete MV switchgear range suitable for all the switching operations from 7.2kV to 24kV in the secondary distribution network.

Operating safely in a distribution network requires different switching points to obtain maximum service continuity in case of fault on the network. TPS can be used in various applications in the secondary distribution network.

Construction Characteristics

The switchboard is made of a metal structure composed of galvanized steel sheets that are assembled using rivets and bolts. This structure is built to withstand the electrodynamic stresses during the operation. A switch and earthing switch are fixed to this structure. A switch envelope made of epoxy resin makes the isolation possible between the structure and live parts. An operating mechanism, a mechanical position indicator and a voltage indicator are positioned in the front of the unit. The position of the switch is given by the mechanical indicator whereas the voltage signalling lamp indicates the presence of voltage. Visibility of main contacts can be checked through an inspection window positioned above the operating mechanism. In the front of the unit, there is a door giving access to different compartments, e.g. cables, fuses and measurement. When the unit is equipped with a low voltage auxiliary compartment it is situated in its upper part.

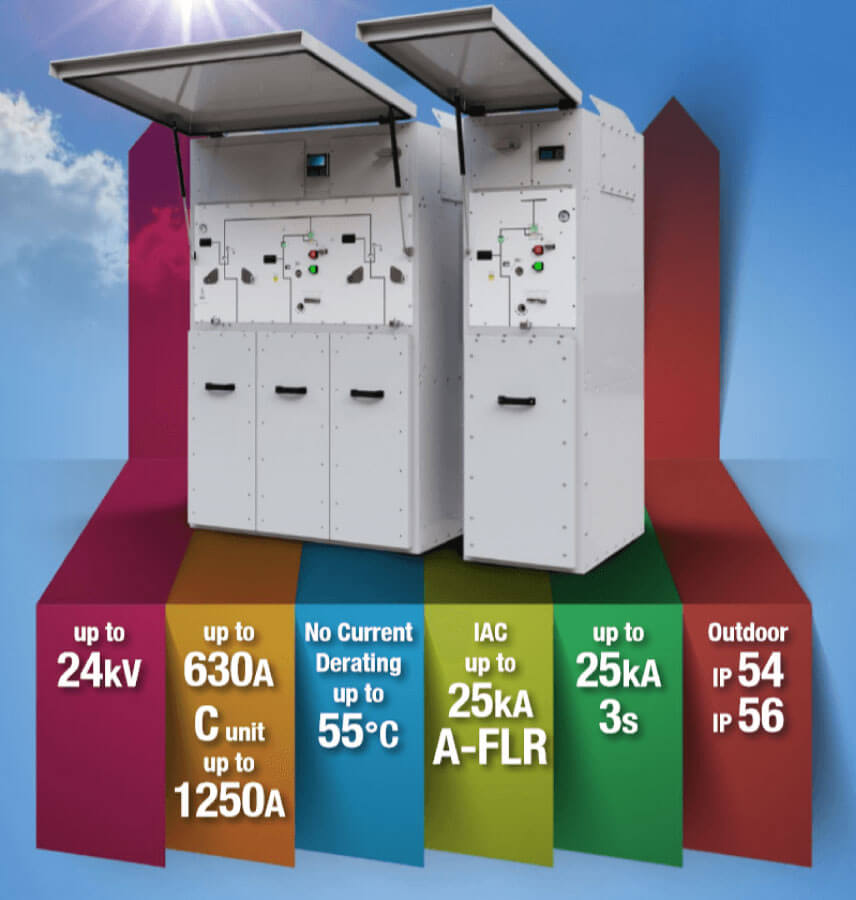

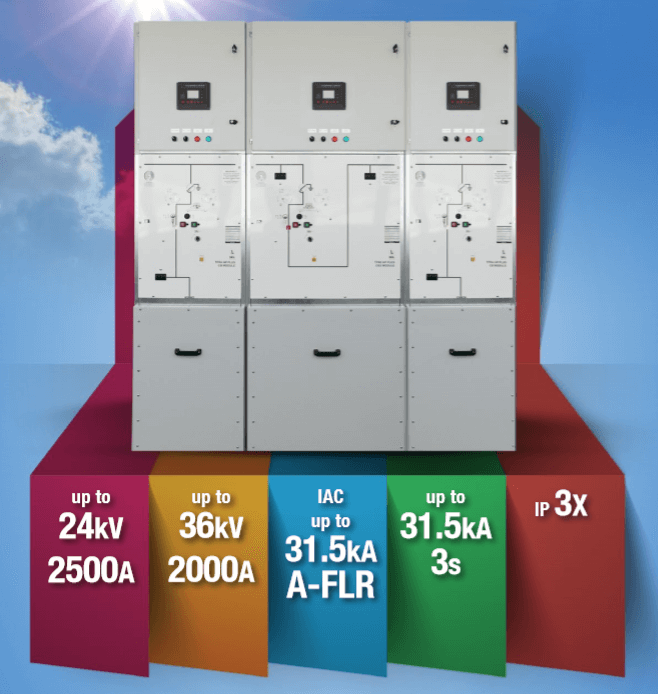

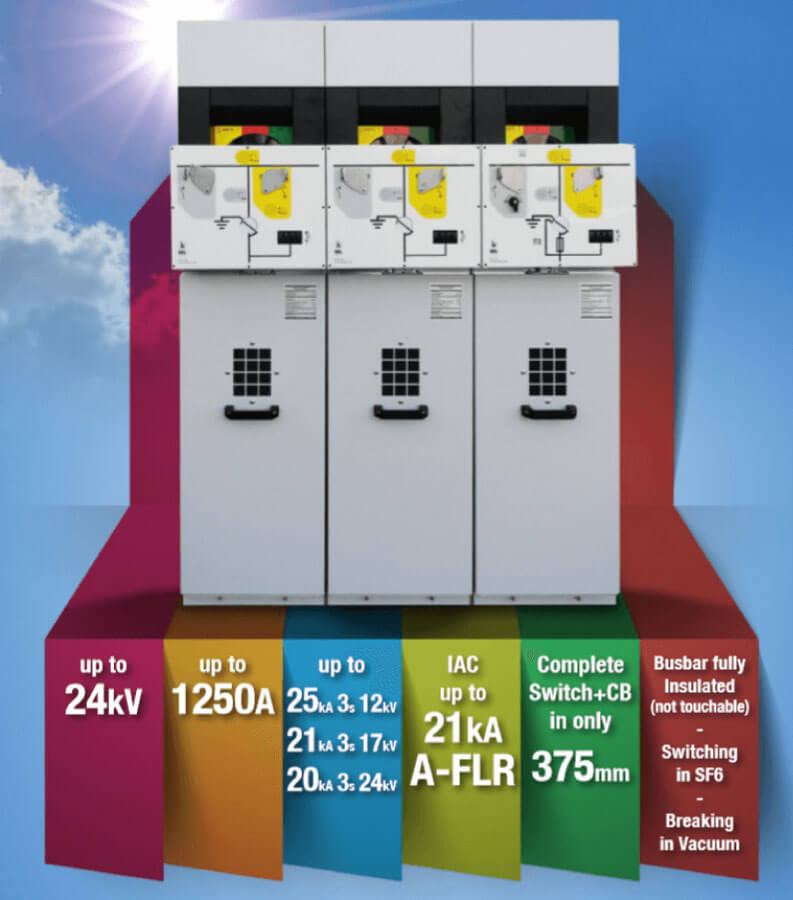

TPR6 HP Plus

Features

TPR6 Plus is a maintenance-free, factory-assembled and type-tested medium-voltage switchgear. It is three-pole metal-enclosed and SF6-insulated. Vacuum circuit-breaker, switch-disconnector and disconnector modules are available. The core of the switchgear consists of hermetically welded containers made of corrosion-resistant stainless steel, accommodating the primary devices (circuit-breaker and three-position switch). The switchgear is sealed for life. The switchgear modules are interconnected by solid-insulated busbars outside the gas compartments.

Construction Characteristics

TPR6 is a completely “sealed for life” system with a stainless steel tank containing all live parts and switching devices. The structure can withstand the electrodynamics stresses during the operation. The operating mechanism, movable mimic and voltage signalling lamps are positioned in the front panel. Switches are operated by means of spring-operated mechanisms. Movable mimic gives the position of the switch whereas the voltage signalling lamp indicates the voltages. Fuses and cable compartment are easily accessible through the front door which is interlocked with the earth switch. If present, the low voltage auxiliary compartment is situated above the ring main unit.

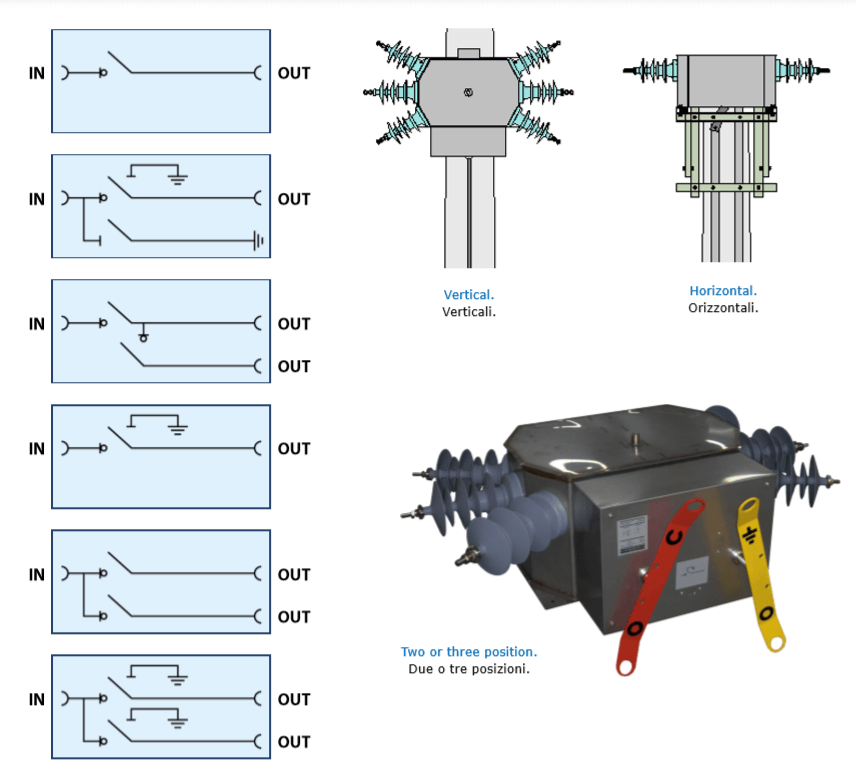

PLS Pole Mounted SF6 Switch Disconnector

Features

PLS is an SF6-insulated pole mounted switch disconnector designed for overhead line installations up to 40.5kV 630A/1250A. This outdoor switch disconnector is suitable for both remote control and manual operation with excellent load breaking and fault making capacity. The tank fulfils the requirement of “sealed pressure system” meaning that there is no need to add gas during its expected lifetime.

Construction Characteristics

The stainless steel tank is particularly suitable for providing protection against the extremes of heat, snow, corrosion, moisture and salt in the most demanding climatic conditions.PLS is easy to install due to its reduced dimensions and weight and it is almost maintenance-free.

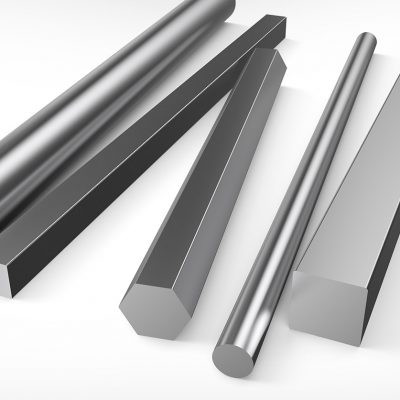

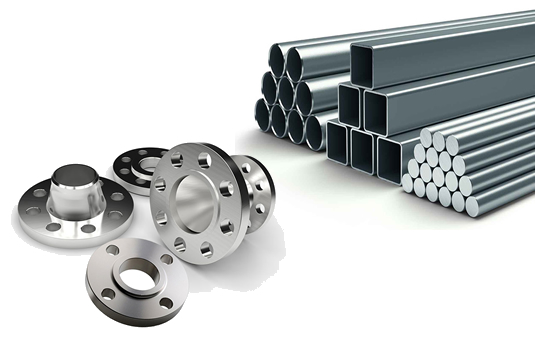

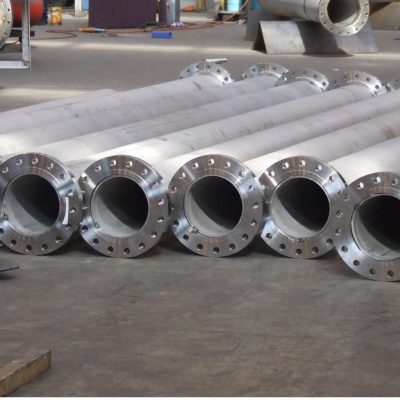

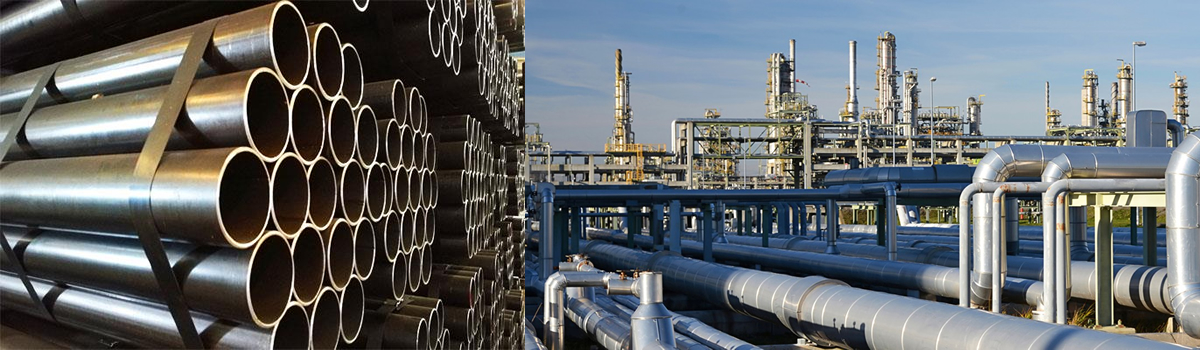

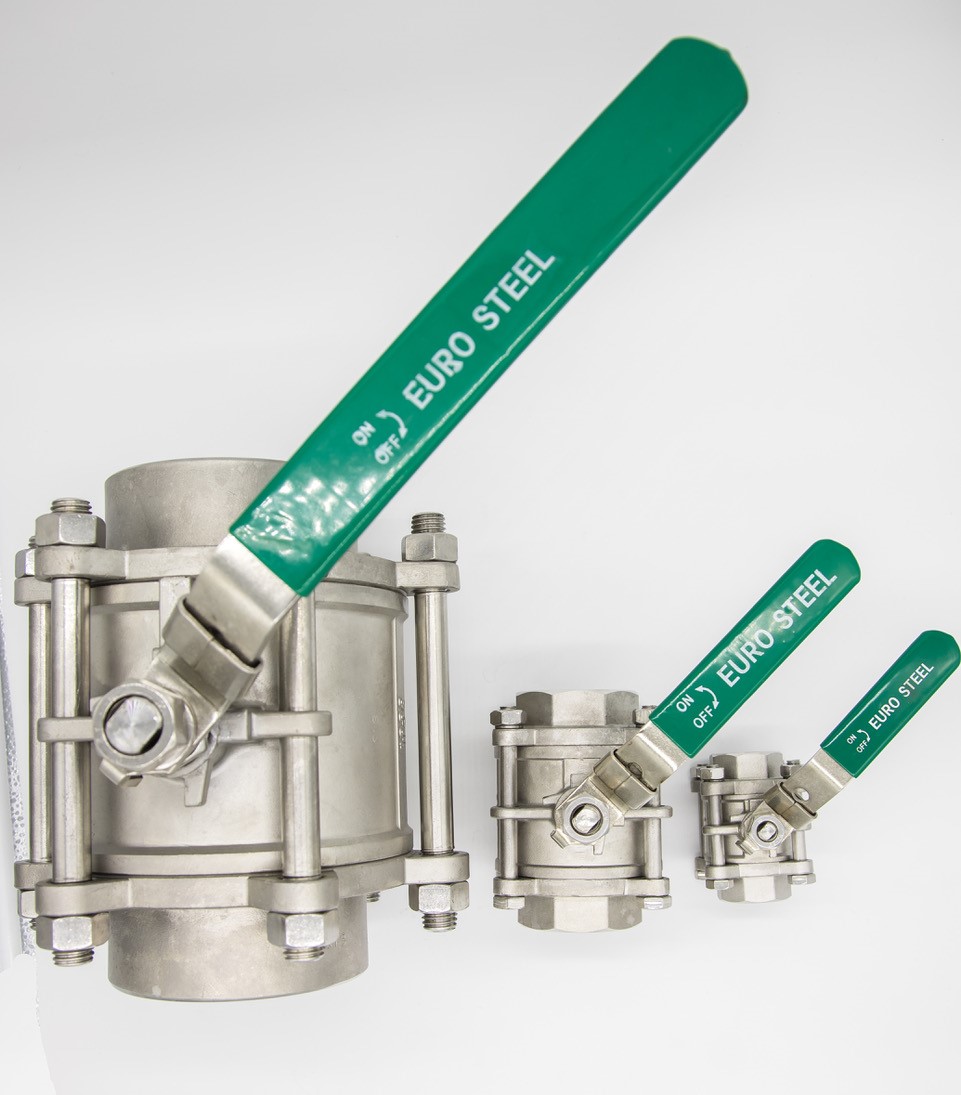

Eurosteel supplies the Mining industry with:

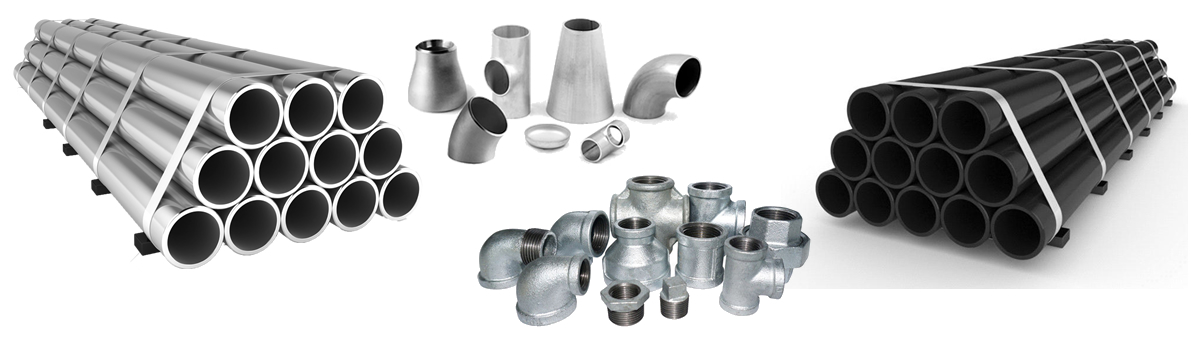

• Pipes

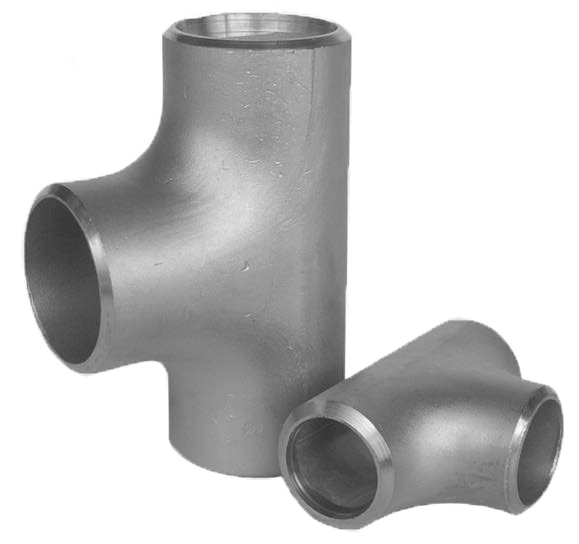

• Fittings
• Flanges
• Coil
• Sheet
• Plate
• Hex Bar
• Square Bar
• Round Bar
• Square Tube
• Rectangular Tubing
• Round Tube
• Angles
• Flats and Sections

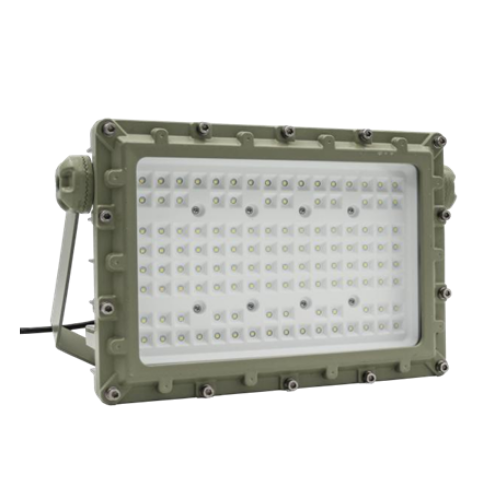

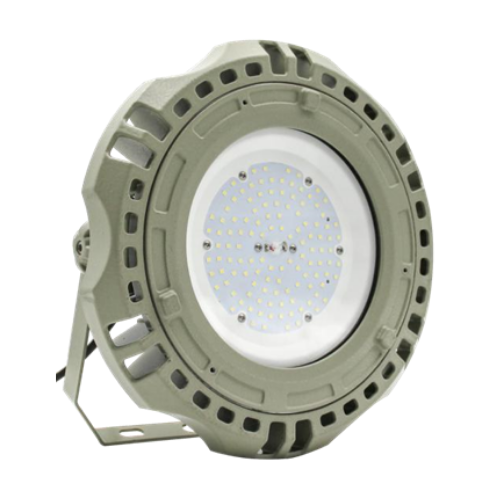

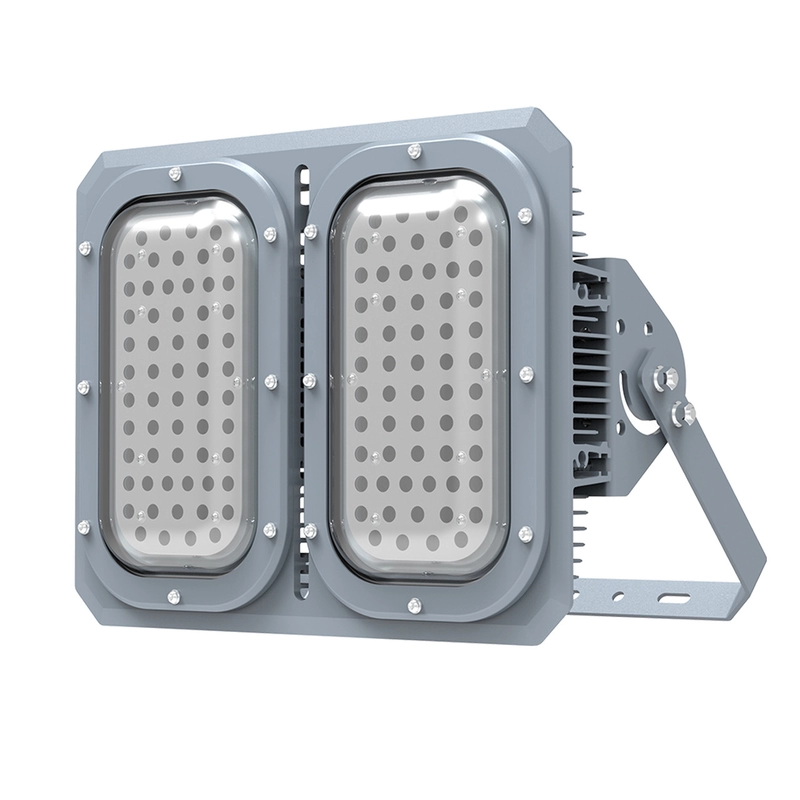

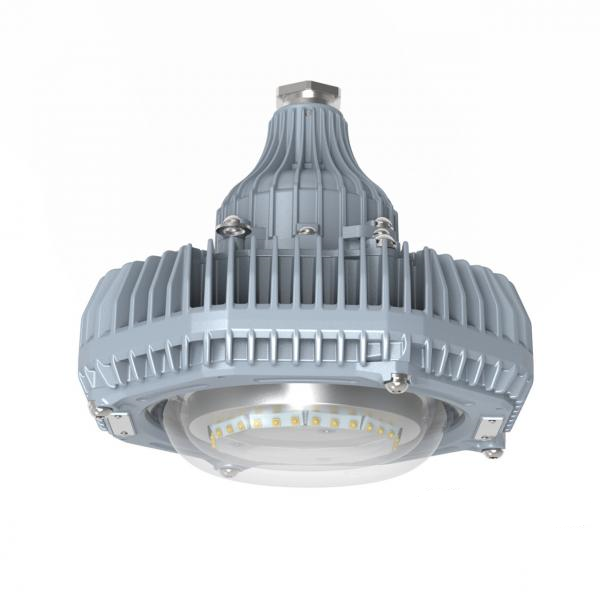

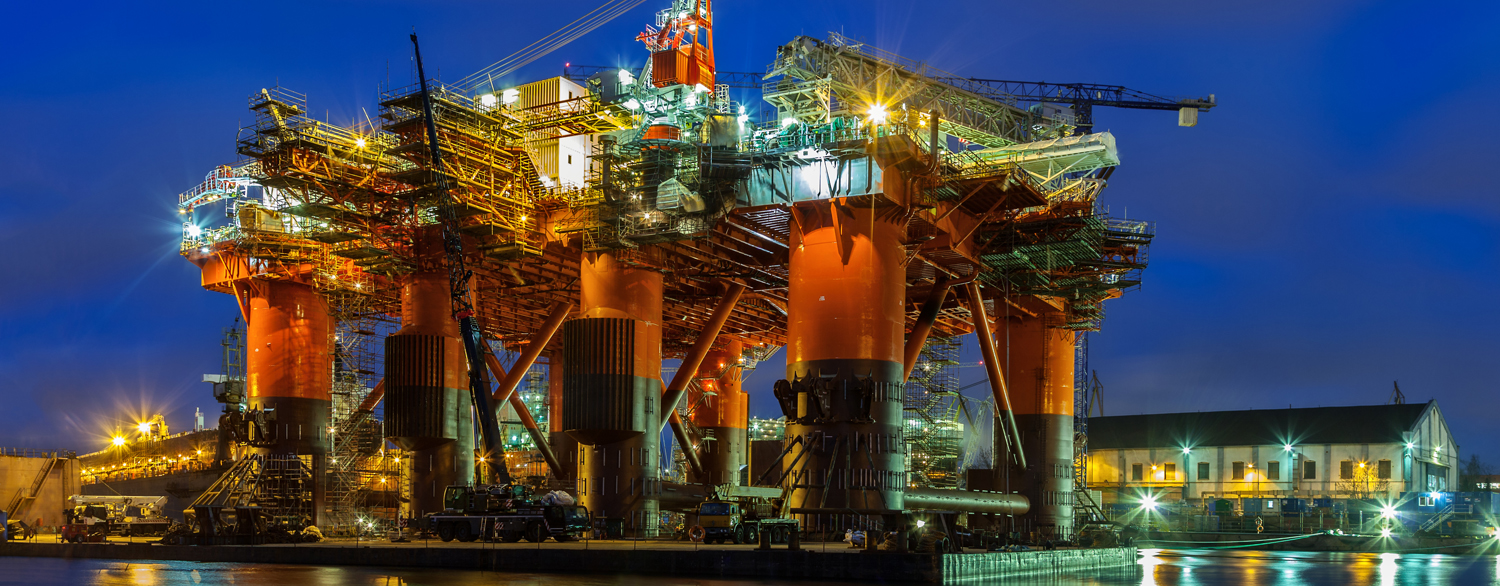

Explosion Proof Lighting Solutions

ALTSA Provides Specialized Lighting Solutions for hazardous environments. A robust design that provides secured lighting for zones 1, 2, 21 and 22 whilst, consistently delivering highest lumen outpu promoting safety.

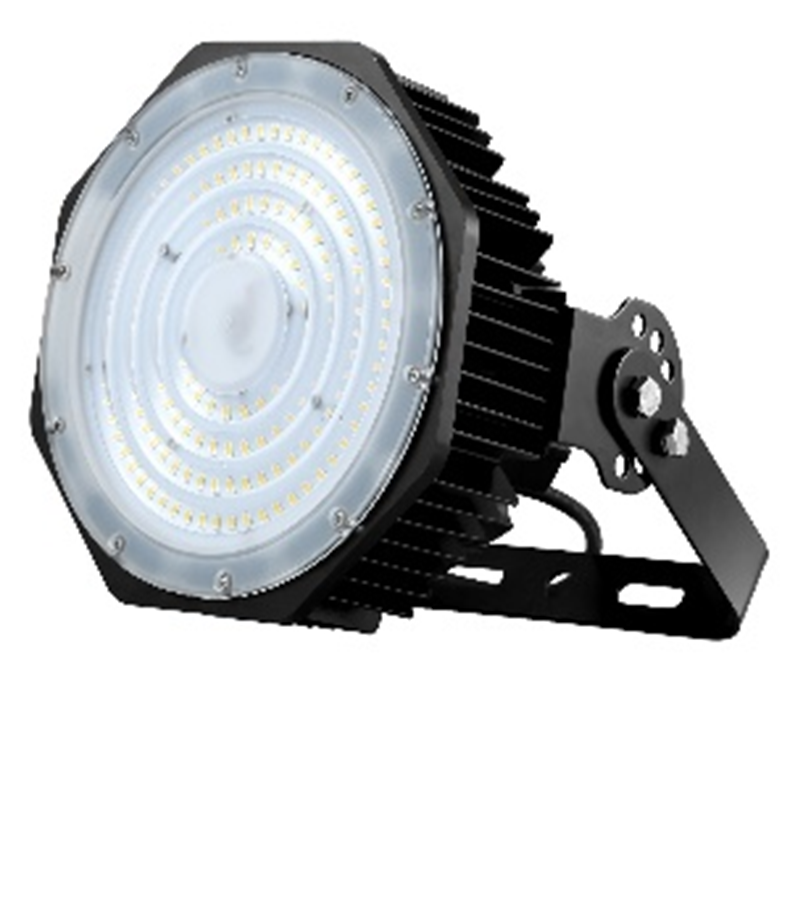

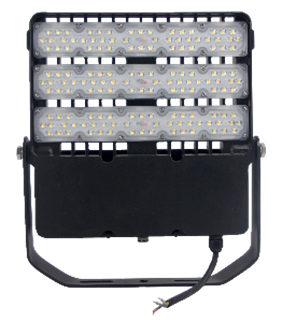

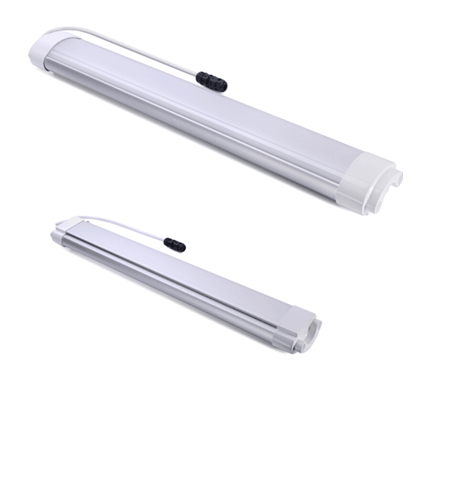

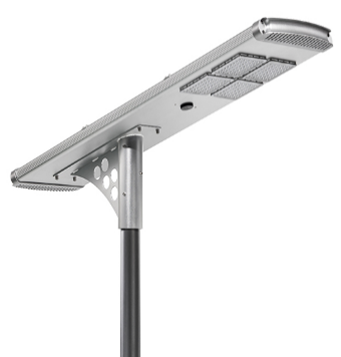

Commercial and Industrial Lighting Solutions

ALTSA specializes in efficient, effective lighting, covering a wide range of industrial and commercial applications

ALTSA employs more than 150 qualified professionals with the capacity to install more than thousands of light fittings per day in any environment

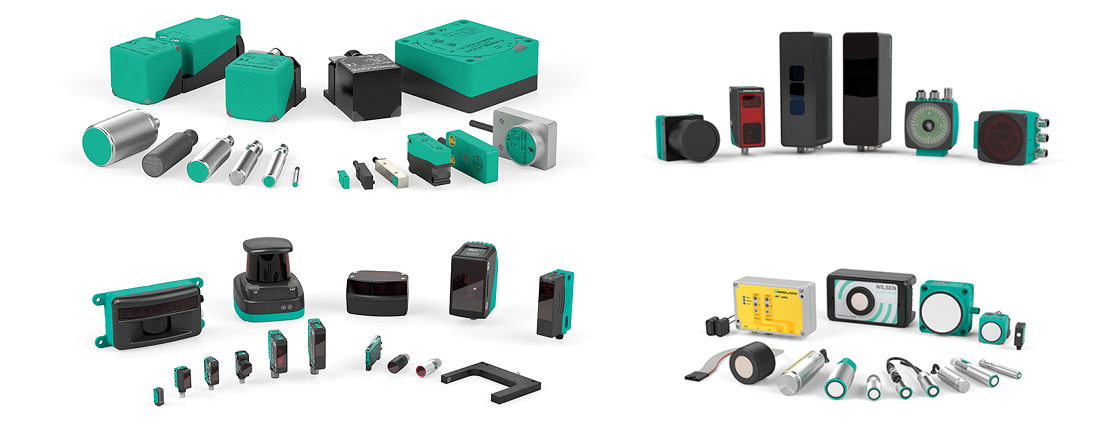

Industrial Sensors

As a pioneer and innovator in the field of industrial sensors, we seamlessly integrate into your factory automation applications.

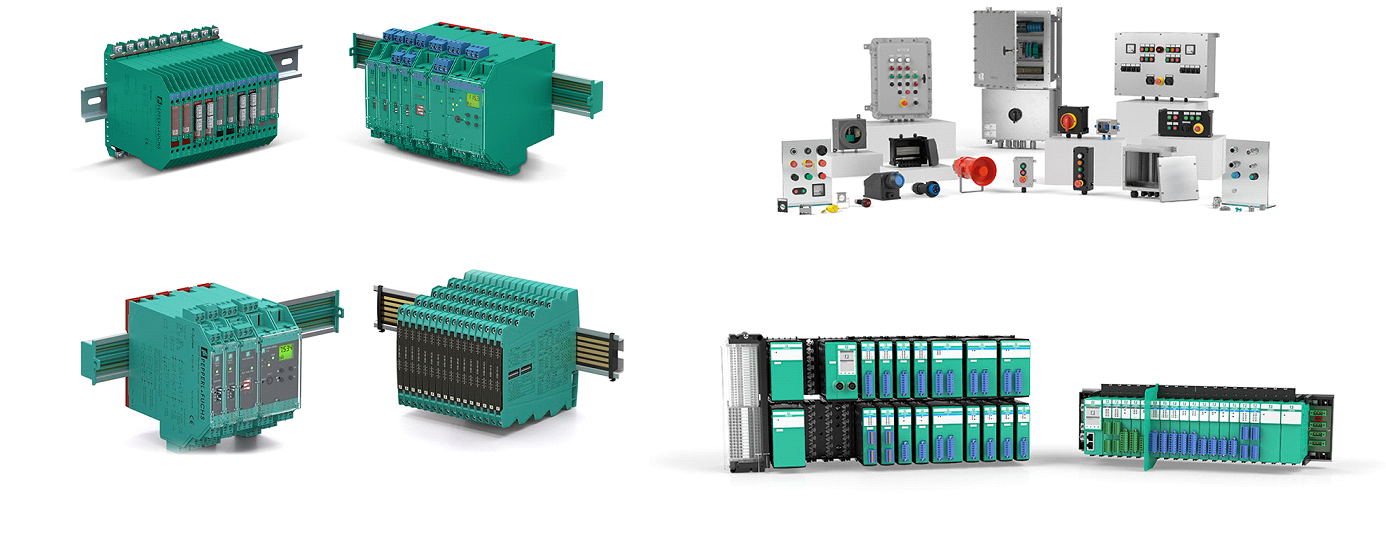

Explosion Protection

The explosion protection of your plant is our expertisewith reliable solutions and technologies for process automation. As a pioneer and innovator in the field of industrial sensors, we seamlessly integrate into your factory automation

• Bitumen lining
• Corrosion protection
• Epoxy lining / coating

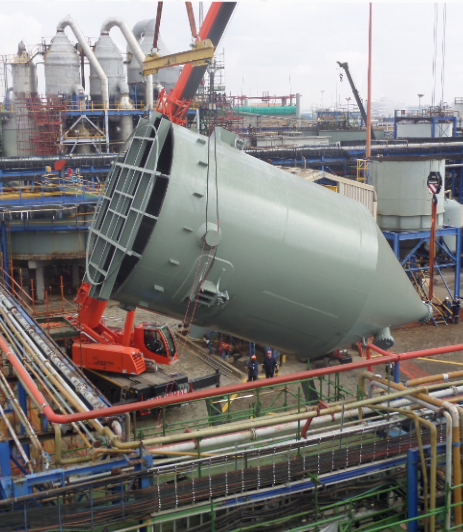

• Heavy lifts
• Hot dip galvanising
• Laser cutting
• Laser alignment of rotating equipment couplings
• Mortar lining
• NDE
• Positive Material Identification (PMI)
• Post Weld Heat Treatment (PWHT)
• Rolling and bending
• Rubber lining
• Specialised rigging

• Pipework maintenance shutdowns: in-depth scope definition, detailed preparation and planning, high-level supervised execution, monitoring and reporting.
• Platework and structural fabrication; tanks, silos, hoppers, ducting, platforms, walkways.
• Project and bulk piping material supply; managing RFQs to local and overseas suppliers, bid tabulations, liaison with client, order placement, packing and delivery to the desired location with the correct documentation in place

• Pipework detailing: producing 2D isometric drawings and Bill of Material (BOM)
• Pipework fabrication: piping spools, jacketed systems, form pieces, pulled bends
• Pipe support fabrication; brackets, shoes, field supports
• Pipework and mechanical installation: construction management and project controls professionals guiding competent teams to bring your project to a successful conclusion
• Site piping surveys; conducting field measurement , compilation of the BOM, hand sketches or 2D isometrics
• Welding to recognized codes; BS-EN, ASME, AWS
• Welding materials; carbon, stainless, duplex, alloy and low temperature steels

SITE MAJOR

Afrilog provides accurate procurement to specification by focusing on technical expertise and an awareness of the individual procurement material categories. By further segmenting material categories according to the SPEQ model, specific execution methods enable direct and indirect cost savings through material price reductions and by promoting the lowest total cost approach throughout the supply chain.

Our personalized category management services are intended to help you achieve the following goals:

• Technical Procurement
• SPEQ Categorisation
• Cost Minimisation/ Saving Optimisation

Tail-End Spend Management

A sometimes-unnoticed cost contributor, “The Tail End” is made up of numerous low-value stock keeping units (SKUs) that generate a significant level of transactional volume. Each transaction entails an unquantifiable cost. These costs include:

• Time – Excessive transactions divert important time away from critical supply chain opportunities and challenges.
• Documentation – Multiple pieces of paper are generated for each transaction across the supply chain; these administrative costs are incorporated into the supply chain in some way or another.
• Errors – Increased transaction volume results in increased possibility for error and increased data to monitor and manage, increasing the likelihood of supply chain errors that result in additional costs or delays.

Our Tail-End solution allows our clients to focus on what matters most while we manage small value purchases, lowering total supply chain expenses.Our tail end management service is intended to do the following:

• Reduce total transaction volume and time
• Relive procurement organisation of large volumes
• Increased capacity of client resources
• Reduced total supply chain cost

Inventory Management

(Demand Planning and Management) With rising working capital demands in global supply chains, leveraging vendors to better support inventory in the right location and at the right time has become increasingly crucial. Managing consignment and vendor contracts, on the other hand, can be a complicated undertaking, and typical commercial terms are no longer sufficient. Afrilog homogenises this procedure by leveraging pre-existing and established vendor agreements.

Our consignment / Vendor Inventory Management (VMI) services and warehouse management provide for:

• Rapid deployment of inventory on-site transparent agreements with clear business rules
• Shorter lead times
• Less working capital

Solutions to streamline your inventories

Local procurement, consignment, VMI, and materials requirement planning play a major role in:

• Simplified inventory management
• Reduced risk of overselling
• Cost-savings
• Avoidance of stock-outs and excess stock
• Improved business negotiations
• Better product visibility in the event of a recall
• Security of supply

Vendor Management

Managing a diverse set of vendors in today’s global supply chain while adhering to all regulatory and performance benchmarks is getting increasingly complicated. With an established network of vendors, we can assure our clients that vendors have been vetted and evaluated continuously through effective performance monitoring. This enables our clients to focus on cost reduction, service quality, and risk mitigation to extract additional value from vendors across the contract life cycle to:

• Reduced administration
• Improve the quality of your service
• Reduce your costs and Leadtime
